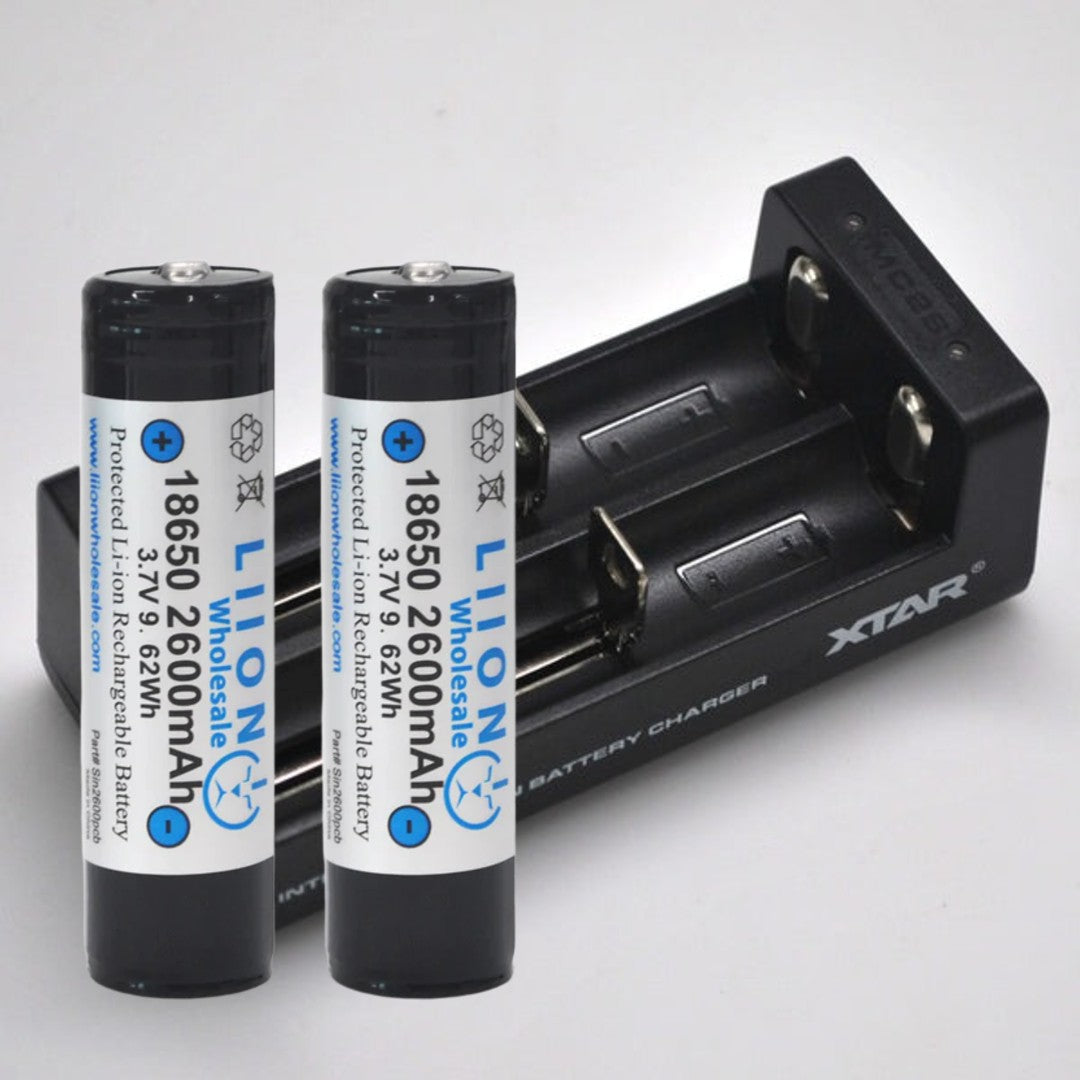

18650 2600mAh Batteries and Charger

Fuel your engineering projects with these protected, 2600mAh button-top batteries and charger!

May be required by some STEM Kits - make sure to review the STEM Kit description to see what may be needed.

Protected 2600mAh 10A 18650 Button Top Specifications:

• Size: 18650
• Style: BUTTON top
• Approximate Dimensions (including button): 69.08mm length x 18.51mm diameter
• Brand: Liion Wholesale
• Manufacturer Rated Nominal Capacity: 2600mAh
• Manufacturer Rated Minimum Capacity: 2500mAh
• Manufacturer Rated Max Discharge Current: 10A
• Nominal Voltage: 3.6V
• Peak Voltage: 4.2V
• Protected: YES
• Protection Cutoff Current:  ~20A
• Protection IC:  Ricoh R5478N101CD
• MOSFETS:  FNK10N25B (Quantity 3)
• Origin: Cell made in China, Battery assembled in China, Protection IC made in Japan
• Battery Type:  NMC
• Cell Certifications:  UN38.3, IEC 62133, CB certificate, CQC, PSE
• Battery Assembly Certifications: UN38.3

XTAR MC2S Features:

• USB connector allows for versatile charging
• Temperature monitoring
• Intelligent current adjustment system
• Reverse polarity and short circuit protection
• Automatic charging cutoff
• 0V battery activation mode

Specifications:

• Connector type: USB (Standard)

  • USB Adapter requires minimum 5V/1A
• Input voltage: DC 5V/2.1A
• Charge speeds: 1A x 2
• Battery chemistry: Lithium ion only (IMR/INR/ICR 3.6V or 3.7V)
• Common battery sizes: 10440, 14500, 18350, 18500, 18650, 21700, 20700, 26650
  • Fits all cylindrical lithium ion batteries from 10440 to 26650
  • Can only fit 1x26650 and 1x21700 at a time
  • Will NOT fit protected 20700/21700 cells

In the Box:

• 2 x 18650 2600mAh Batteries
• XTAR MC2S charger
• USB cable
• Manual
• XTAR MC2S Manual

Battery Warning

Warning: Lithium ion batteries may explode or burn due to improper use. Using these batteries for purposes not intended by the manufacturer, including outside a battery pack and/or without a BMS, may cause severe injury and damage. We are not responsible for any injuries caused by lithium ion batteries - use at your own risk.

All rechargeable batteries have inherent risks under any circumstance. Use caution with working with li-ion batteries (lithium-ion), LiPo (lithium ion polymer), and any rechargeable cells (together "rechargeable batteries"), as they have dangerous charging characteristics and are known to explode or burn if mishandled. A purchaser and user of rechargeable batteries should educate themselves on rechargeable batteries, especially as to charging, discharging, assembly, and storage. Learn more about proper storage and care for rechargeable batteries here. We are not responsible for any damage caused by the misuse or mishandling of rechargeable batteries.

Here are a few tips:

• Never completely discharge batteries (usually below 2.5V for li-ion or 2.0V for LiFePO4, check datasheet)
• Charge fully (usually to 4.2V for lithium ion or 3.6V for LiFePO4) before first use
• Never charge batteries to more than their full charge voltage
• Do not charge unattended
• Do not store your li-ion batteries fully charged for an extended period of time (weeks or more)
• If you must store your battery for a long time, only store in a case or individual box in a cool and dry place at approximately 3.5-3.7V for li-ion or 3.2V for LiFePO4
• Use only high quality battery chargers
• Do not expose to heat
• Do not connect the positive contact to the negative contact without an appropriate load
• Never exceed the battery's specifications
• Never try to charge or discharge li-ion batteries with battery chargers that are not made for li-ion batteries
• Always charge these batteries on and within fireproof material
• Never leave rechargeable batteries in a recharging station unattended
• Do not use any rechargeable battery or charger if any visible damage is present, or if known mishandling, accidental or otherwise, has occurred
• Always store and transport rechargeable cells in a safe, non-conductive container (never keep a spare battery loose in a pocket, purse, etc. and always use protective cases)
• Properly dispose of all battery cells and chargers in accordance with local laws and mandates (if you're unsure, contact your local municipality)
• If a rechargeable battery overheats, hisses, or bulges, immediately quarantine the battery from any combustible materials - ideally, take the battery outside
• If a rechargeable battery catches fire, the FAA recommends pouring water or soda on the battery and surrounding areas - ideally, use a foam extinguisher to quell the fire
